Powerful and versatile Rider with twin-cylinder engine and All-Wheel-Drive. Optional 94, 103 or 112 cm Combi cutting decks, offering first-class BioClip® and rear ejection cutting. Suitable for landowners who demand superior efficiency, manoeuvrability and perfect results all year round. The articulated steering system and front-mounted cutting deck enables intuitive operation, excellent mowing accessibility and great overview of your working area. All-Wheel-Drive remarkably increases and secures handling on uneven, wet and slippery areas as well as on slopes. In short – this Rider gives you the ultimate driving experience. Can easily be fitted with a number of attachments such as broom, flail mower, snow blade and snow thrower, for maximum output throughout the year. Features like power steering, pedal-operated hydrostatic transmission, headlights and cutting deck service position, makes operating and servicing this Rider a pleasure.

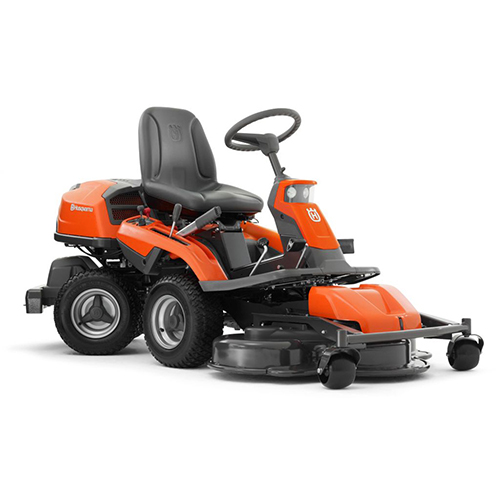

Husqvarna R316Ts AWD
Engine manufacturer Kawasaki Engine name FS Series V-Twin Engine type FS481V Net power at preset rpm 9.6 kW @ 2900 rpm Cylinder displacement 36.8 cu.inch / 603 cm³ Cylinders 2 Engine cooling Air Generator 15 A Battery 12 V 24 Ah Fuel Type Gasoline Fuel tank volume 3.2 gal. / 12 litre Engine lubrication type Full pressure Oil type SAE10-W30 Oil capacity 57.5 fl oz / 1.7 litre Oil filter Yes Transmission type Hydrostatic AWD Transmission manufacturer Kanzaki Transmission model K574 Drive method Pedal-operated Speed forward, min-max 0-5.6 mph / 0-9 km/h Speed reverse, min-max 0-5.6 mph / 0-9 km/h Safety limit slopes 10 ° Uncut circle1 11.8 inch / 30 cm Cutting width, Min-Max 37-44.1 inch / 94-112 cm Optional cutting decks Combi 94, Combi 103, Combi 112 Cutting deck type Combi Cutting deck material Steel Cutting methods BioClip®/Rear discharge Cutting height, min-max 1 – 3 inch / 25 – 75 mm Cutting height steps 9 pcs Blade engagement Automatic Blades 3 Powder-coated cutting deck Yes Hour meter Digital with pre-programmed service intervals Tyre dimensions, front 170/60-8 Tyre dimensions, rear 170/60-8 Wheelbase 34.9 ” / 88.7 cm Ground clearance 3.35 inch / 85 mm Base machine, length 79.5 inch / 202 cm Base machine, width 35 inch / 89 cm Base machine, height 45.3 inch / 115 cm Weight 542.33 lbs / 246 kg Gross weight towed2 275.5 lbs / 125 kg
